NL180

CNC Channel Letter Bending Machine

The NL180 is a CNC channel letter bending machine designed for efficient and precise aluminum profile forming. It integrates continuous feeding, automatic slotting, and two-axis bending to process a variety of aluminum materials for channel letter production. With dedicated bending software and multiple supported file formats, it provides a practical solution for automated sign-making production.

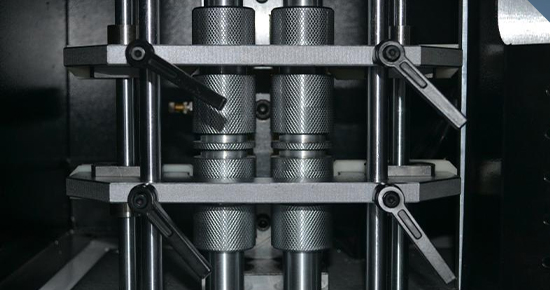

  • Automatic Continuous Feeding
    The rolling continuous feeding system with closed-loop self-testing provides stable material feeding and uses an encoder to monitor feeding accuracy during operation.

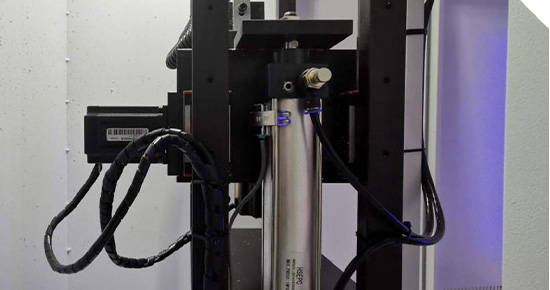

  • Automatic Slotting System
    The pneumatic lifting rotary milling cutter enables efficient slotting operations, while electric adjustment simplifies machine setup and calibration.

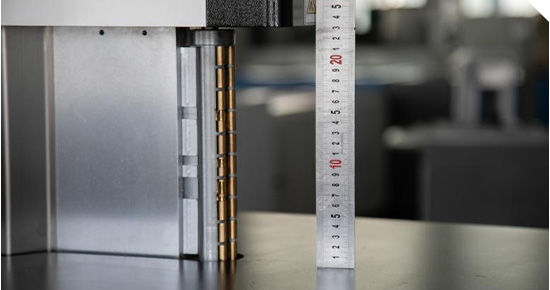

  • Precision Two-Axis Bending
    The two-axis linkage copper-shaft roller extrusion system forms aluminum profiles while helping protect the material surface from scratches.

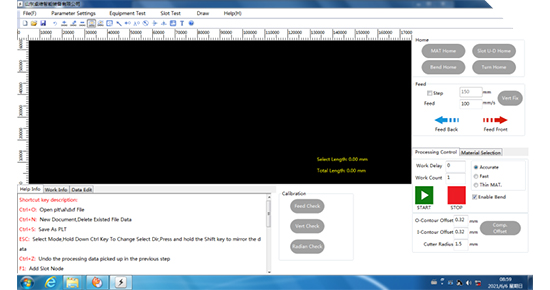

  • Flexible File & Software Support
    The CNC system supports AI, PLT, and DXF file formats, while the Auto Drive bending software simplifies programming and machine operation.
Request a Quote
Technical Parameters
ModelNL180
Material CategoryFlat Aluminum
Edge Aluminum
Rectangle Aluminum
Triangle Aluminum
Channelume
Material Thickness0.020–0.047 [in]
Maximum Material Width7.87 [in]
Supported File FormatsAI / PLT / DXF
Feeding Accuracy±0.004 [in]
Minimum Bending Radius>0.295 [in]
Control CardDRIVECNC
Software SystemAuto Drive Bending System
Input Voltage220 [V] / 50 [Hz]
Equipment Power3 [kW]
Air Pressure0.6-0.8 [MPa]
Machine Weight772 [lb]
Machine Dimensions (L*W*H)84.6*25.6*61.4 [in]
Product Features
Designed for Automated Channel Letter Production
The NL180 is designed for forming aluminum materials used in channel letter manufacturing, supporting different profile shapes and sizes for sign production.
