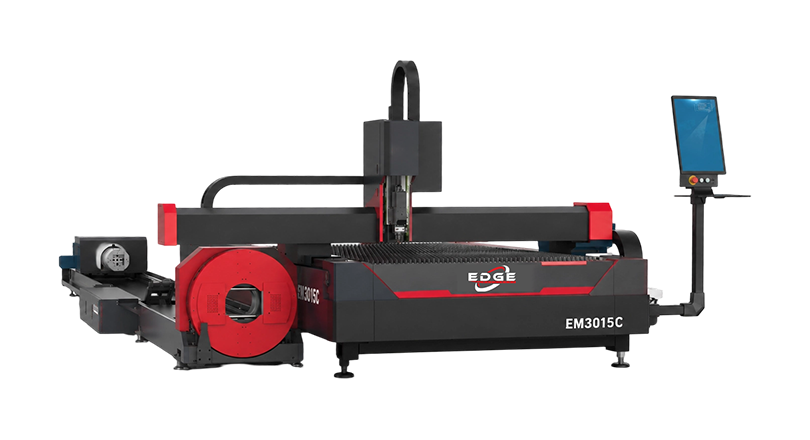

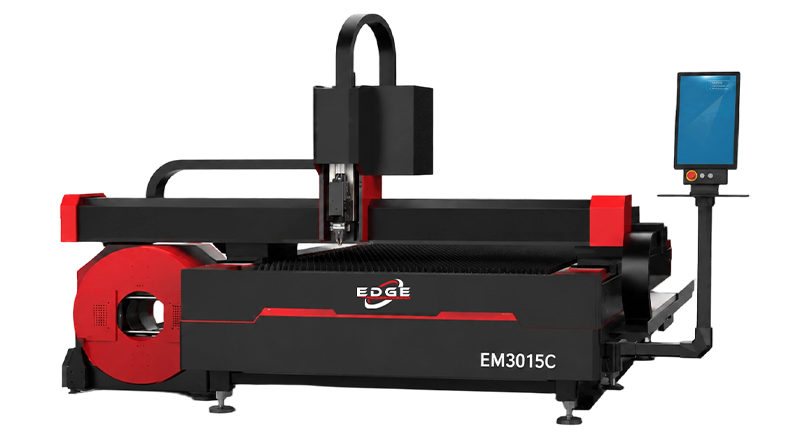

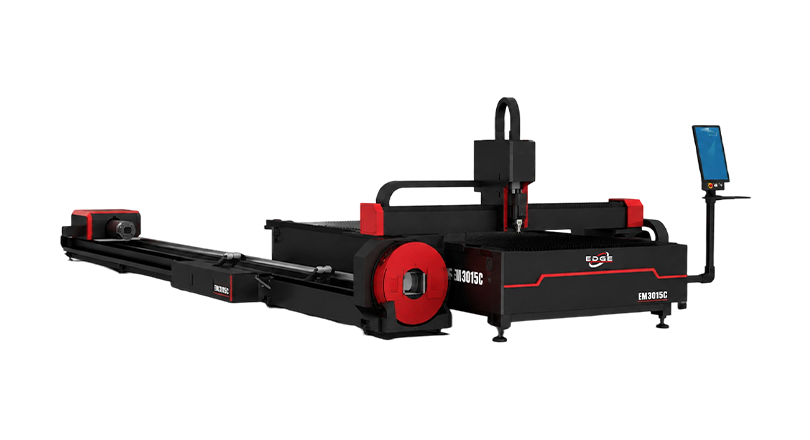

EM3015C
Open-Type Sheet & Tube Fiber Laser Cutting Machine Flexible Sheet & Tube Cutting in One Efficient System

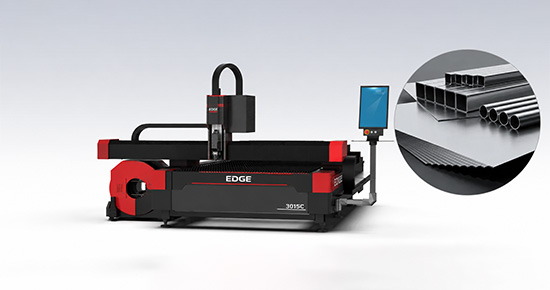

The EM3015C combines sheet metal and tube cutting capabilities in an open-type fiber laser cutting system. Designed for flexible metal fabrication, it provides an efficient and cost-effective solution for manufacturers who need to process both flat sheets and tubular profiles on one machine.
-
Sheet & Tube Cutting in One MachineProcess flat sheets and various tube profiles with a single system.
-
1.5–6kW Fiber Laser OptionsFlexible power configurations for different materials and production requirements.
-
120.0''*60.2'' Sheet Working AreaA practical working size for general metal fabrication.
-
Ø0.7''–8.6'' Tube ProcessingSuitable for round, square, rectangular, and other common tube profiles.
Technical Parameters
| Model | EM3015HM | EM3015C |
| Laser Power | 6–30 [kW] | 1.5–6 [kW] |
| Working Area (L*W) | 120.0*60.2 [in] | 120.0*60.2 [in] |
| X/Y-axis Positioning Accuracy | ±0.00196 [in] | ±0.00196 [in] |
| X/Y-axis Repositioning Accuracy | ±0.00078 [in] | ±0.00078 [in] |
| Max. No-load Speed | 656.1 [ft/min] | 328.1 [ft/min] |
| Tube Size Range | Φ0.7–8.6 [in] | Φ0.7–8.6 [in] |
| Max. Tube Length | 236.2 [in] | 19.6-236.2 [in] |
| Max. Platform Load | 6613.8 [lb] | 2425.1 [lb] |
| Overall Dimensions [L*W*H] | 363.6*136.8*92.4 [in] | 334.6*147.2*82.7 [in] |
| Power Supply | 380V, 3-phase, 50Hz/60Hz.(Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. | |
Product Features
-
1. Sheet & Tube Cutting in One MachineThe machine combines sheet metal cutting and small-to-medium tube processing in one system. Its single-platform design provides a compact structure, flexible operation, reduced footprint, and lower initial investment. -

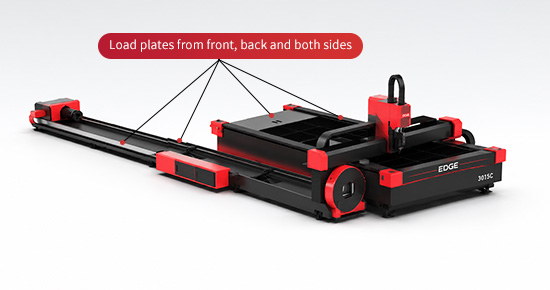

2. Open-Type Design for Flexible OperationThe open structure allows operators to load and unload materials from multiple directions, including the front, rear, and sides, providing better visibility and easier production management. -

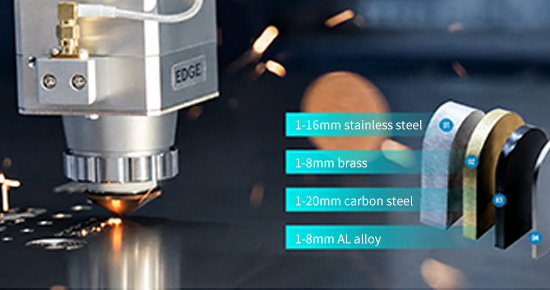

3. Auto-Focus Laser Cutting HeadThe auto-focus cutting head automatically adjusts the focus position according to material type and thickness, enabling efficient cutting of different sheet materials. -

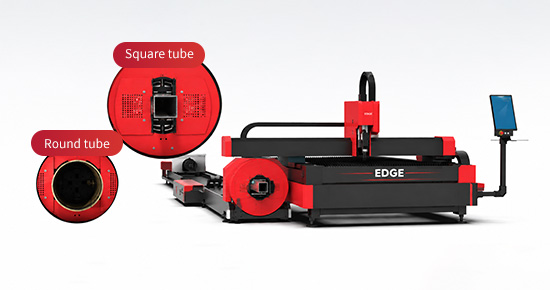

4. Pneumatic Chuck SystemThe pneumatic chuck features one-button clamping and automatic centering, providing high-precision and secure tube holding.
It supports round tubes, square tubes, and other standard profiles with lengths from 19.69–236.22 in and diameters from 0.79–8.66 in.
Applications Across Metal Fabrication
The EM3015C is designed for manufacturers that process both sheet metal and tubular components. Its dual-purpose capability makes it suitable for flexible production environments where different types of metal parts need to be processed on the same equipment.
-
Metal Fabrication
-
Automotive Manufacturing
-
Heavy Equipment
-
Agricultural Machinery
-
Electrical Enclosures
-
Home Appliances
-
Steel Structures
-
Tube & Pipe Fabrication
WHY CHOOSE EDGE
-
APPLICATION-BASED ENGINEERINGEngineered around your materials, thickness range, part sizes, and production goals. -
COMPLETE TURNKEY SOLUTIONSIntegrated equipment, automation, dust extraction, installation, training, and support. -
QUALITY-CONTROLLED MANUFACTURINGEvery machine is inspected, tested, and verified before shipment. -
U.S.-FOCUSED SUPPORTResponsive technical assistance, spare-parts support, and remote troubleshooting troubleshooting.
