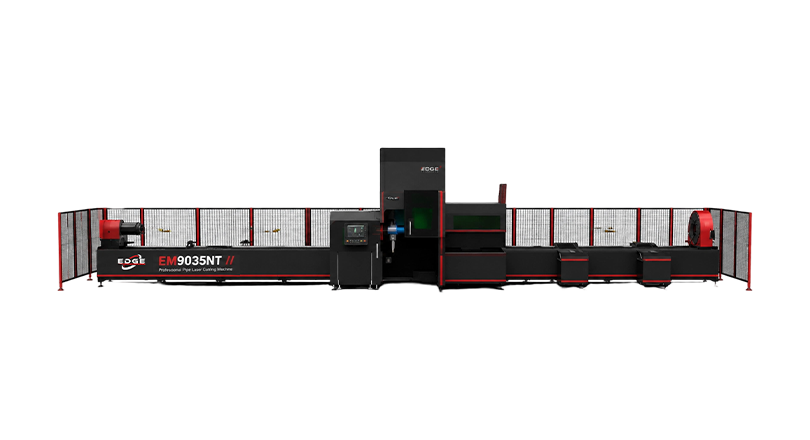

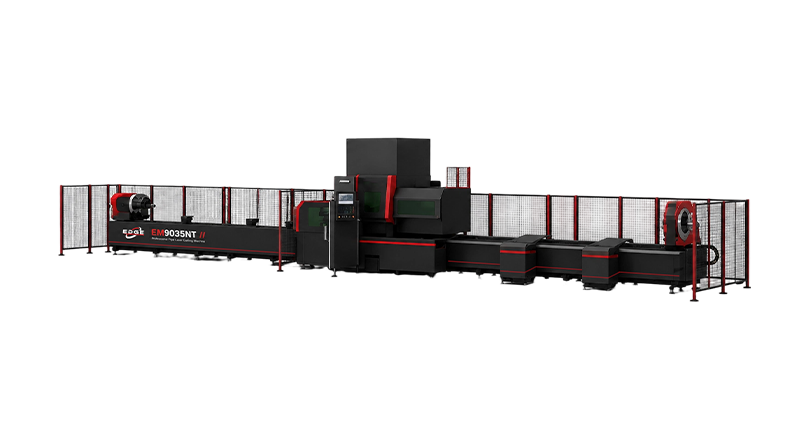

EM9035NT

Three-Chuck Precision. Zero-Tailing Efficiency.

The EM9035NT is a three-chuck fiber laser tube cutting machine engineered for long, large-diameter tube processing. Its movable three-chuck configuration provides stable clamping, precise positioning, and near-zero-tailing cutting, helping manufacturers maximize material utilization while maintaining efficient and consistent production.

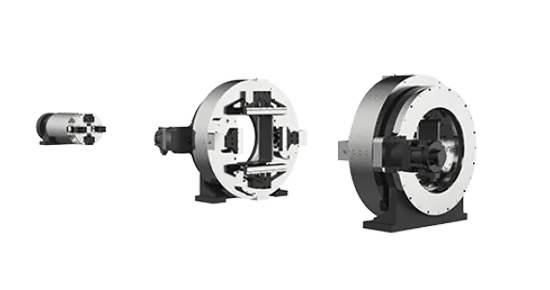

  • Three-Chuck Cutting System
    Enhanced support and clamping stability for long and heavy tubes.
  • Up to 354.3'' Tube Length
    Designed for processing long tubes without excessive pre-cutting or material handling.
  • Up to Ø14.1'' Tube Diameter
    Supports a wide range of round, square, and rectangular tube sizes.
  • Near-Zero-Tailing Cutting
    Movable chuck technology helps reduce unused tube material and improve material utilization.
Request a Quote
Technical Parameters

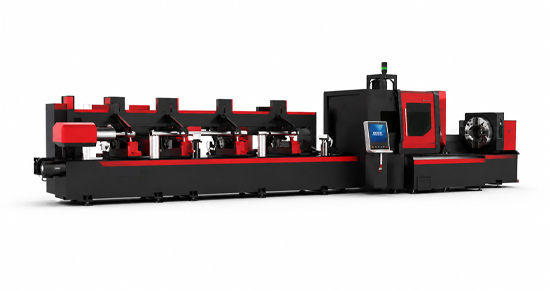

ModelEM9035NTEM6024T
Laser Power3–6 [kW]1.5–6 [kW]
Max. Tube Length 354.3 [in]78.7–255.9 [in]
Round Tube RangeΦ0.7–14.1 [in]Φ0.7–9.0 [in]
Square Tube Range0.7*0.7–14.1*14.1 [in]0.7*0.7–9.0*9.0 [in]
Max. Tube Weight1543.2 [lb]573.2 [lb]
X/Y-axis Positioning Accuracy±0.00196 [in]±0.00196 [in]
X/Y-axis Repositioning Accuracy ±0.00118 [in]±0.00118 [in]
Max. No-load Speed 196.8 [ft/min]328 [ft/min]
Max. Chuck Rotation Speed60 [rpm]100 [rpm]
Overall Dimensions [L*W*H]663.3*108.2*131.8 [in]375.1*76.7*86.6 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.
Product Features
Built for Long & Heavy Tube Applications
The EM9035NT is designed for manufacturers processing long, large-diameter tubes and structural profiles. Its three-chuck configuration and follow-up support make it suitable for demanding applications where material utilization, cutting stability, and production efficiency are critical.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
