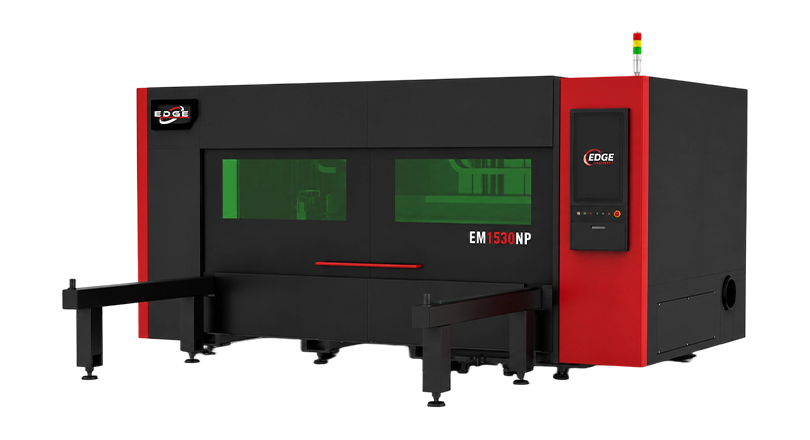

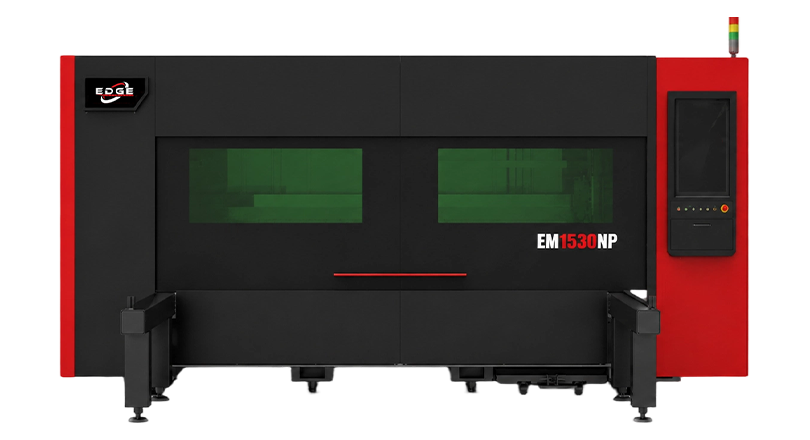

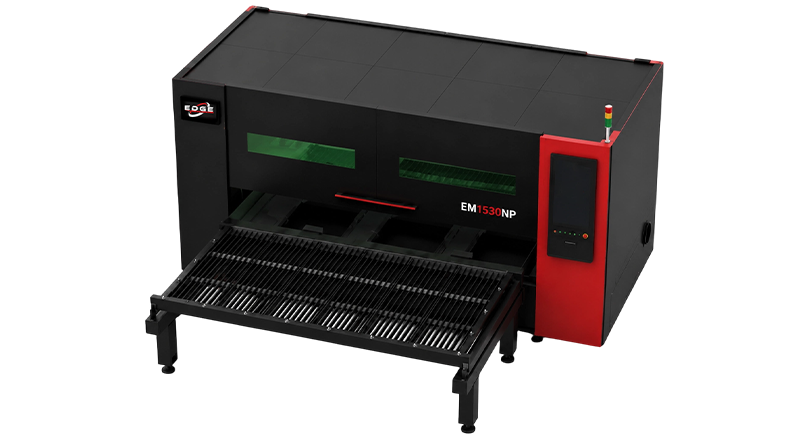

EM1530NP

Compact Design. Fully Enclosed. Built for Efficient Sheet Metal Cutting.

The EM1530NP combines a compact footprint with a fully enclosed cutting environment, delivering reliable and efficient fiber laser cutting for everyday sheet metal production. Designed for safety, ease of operation, and space-efficient manufacturing, it is an ideal solution for workshops and industrial fabricators looking for dependable cutting performance without a large machine footprint.


  • 1.5–6kW Fiber Laser Power
    Flexible power options for a wide range of sheet metal applications.
  • 119.2''*59.4'' Working Area
    Designed for efficient processing of standard large-format metal sheets.

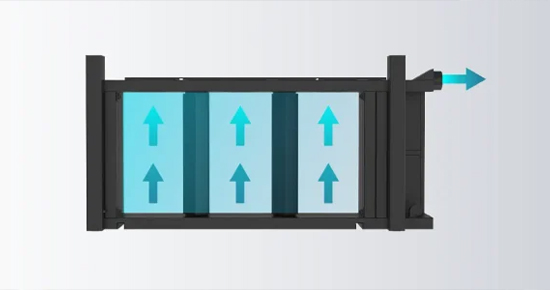

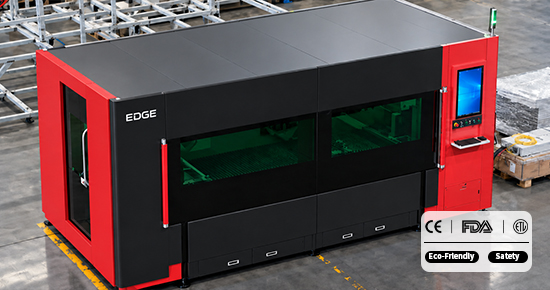

  • Fully Enclosed Cutting Area
    Helps improve operational safety while containing cutting smoke and particles.
  • 328 ft/min Max. No-Load Speed
    Fast machine movement supports efficient production and shorter cycle times.
Request a Quote
Technical Parameters
ModelEM1530NP
Laser Power1.5-6 [kW]
Working Area [L*W]119.2*59.4 [in]
X/Y-axis Positioning Accuracy±0.00196 [in]
X/Y-axis Repositioning Accuracy ±0.00078 [in]
Max. No-load Speed 328 [ft/min]
Max. Acceleration1 [G]
Max. Load of Platforms2425 [lb]
Overall Dimensions [L*W*H]193.7*87.5*91.2 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.
Product Features
Built for Everyday Metal Fabrication
The EM1530NP is designed for a wide range of sheet metal applications where compact size, reliable cutting, and easy operation matter. Its enclosed design and flexible laser power options make it suitable for workshops, job shops, manufacturers, and general metal fabrication operations.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
