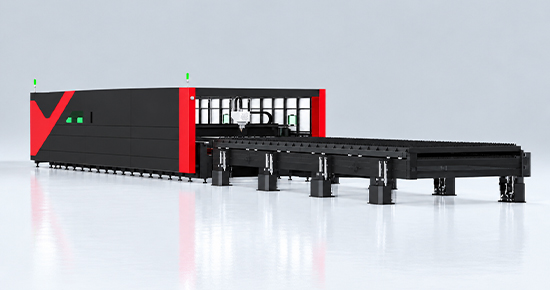

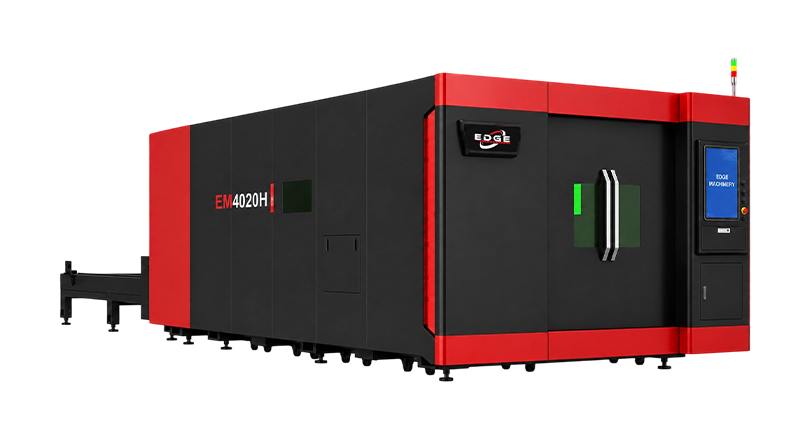

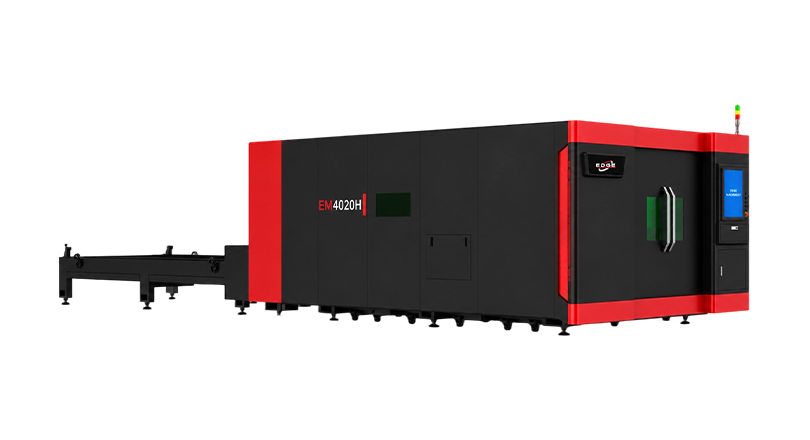

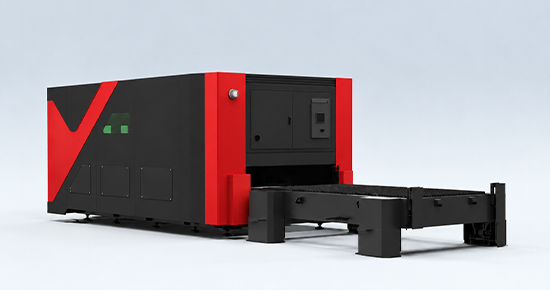

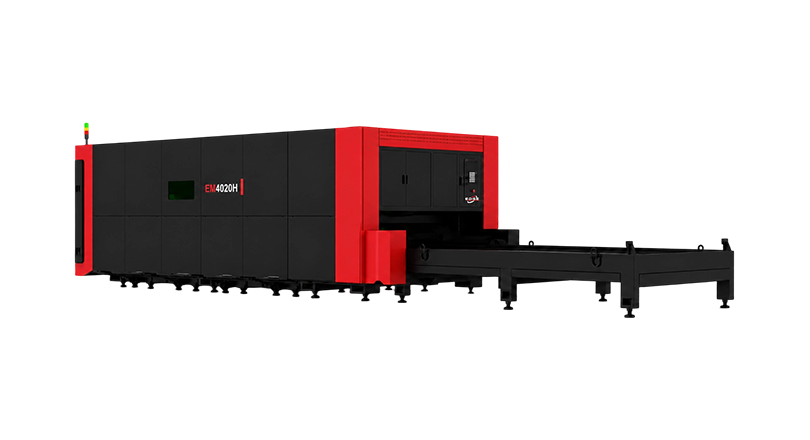

EM4020H

Scalable Power. Larger Format. One Proven Platform.

The EM4020H combines a larger-format working area with flexible laser power configurations from 1.5kW to 80kW, giving manufacturers the freedom to match cutting capability, production volume, and material requirements.

  • 1.5–80kW Flexible Power Options
    Choose from multiple power configurations to match different materials, thicknesses, and production requirements.
  • Large-Format Working Area
    Up to 161.4*80.0 in of working area for larger sheet metal and component processing.
  • Multiple Production Configurations
    From everyday fabrication to high-power heavy-plate cutting, the EM4020H can be configured around your production needs.
  • Fast & Precise Motion
    Up to 656 ft/min maximum no-load speed with precision motion control for efficient production.
Request a Quote
Technical Parameters
ModelEM4020H
Laser Power1.5-12 [kW]6-30 [kW]40-80 [kW]
Working Area [L*W]159.4*79.9 [in]161.4*80.0 [in]159.4*79.9 [in]
X/Y-axis Positioning Accuracy±0.00196 [in]±0.00196 [in]±0.00196 [in]
X/Y-axis Repositioning Accuracy ±0.00078 [in]±0.00078 [in]±0.00078 [in]
Max. No-load Speed 426.5 [ft/min]656 [ft/min]656 [ft/min]
Max. Load of Platforms4188.7 [lb]11023.1 [lb]16534.65 [lb]
Overall Dimensions [L*W*H]435.6*127.7*89.0 [in]424.8*125.2*94.9 [in]422.8*133.7*94.7 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.
Product Features
Built for More. From Everyday Fabrication to Heavy Industry.
With flexible laser power configurations and a larger working format, the EM4020H is designed to support a broad range of metal fabrication requirements. From general sheet metal processing and automotive components to agricultural machinery, heavy equipment, structural steel, and thick-plate fabrication, the platform can be configured around your production needs.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
